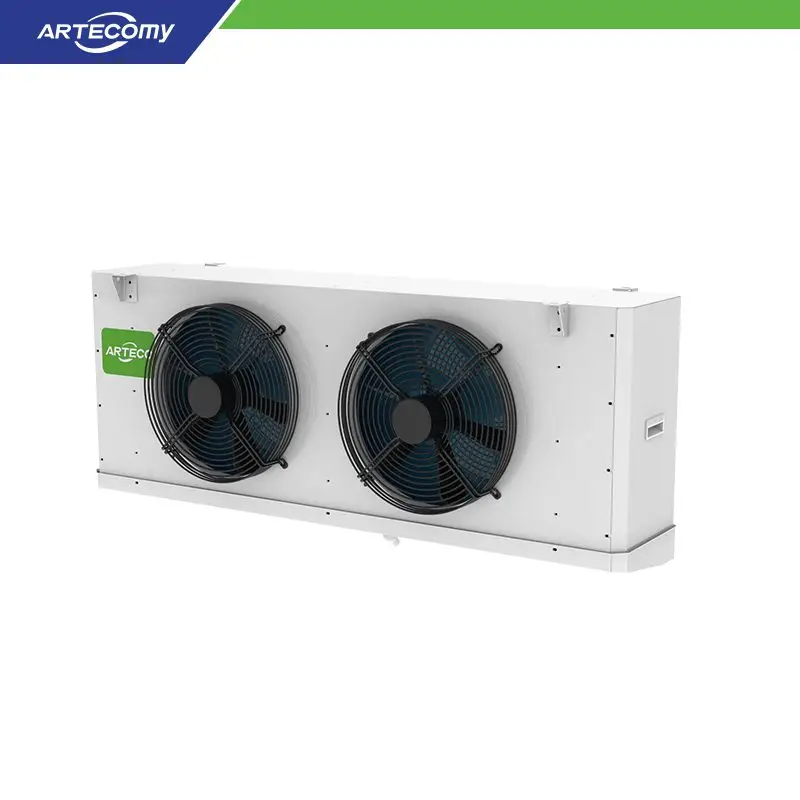

Casing:High-quality galvanized steel with powder coating, excellent corrosion resistance; side panels secured with screws for tight sealing.
Double Water Pan:Angled diamond outer pan for smooth, residue-free drainage; aluminum trough inner pan.
Coils:Ø9.52mm internally grooved copper tubes, 36×31.18 inverted delta arrangement for large heat transfer area and small temperature difference.
Fins:Hydrophilic corrugated aluminum fins with 4.5mm, 6.0mm, and 9.0mm fin spacing to meet various temperature and humidity requirements.

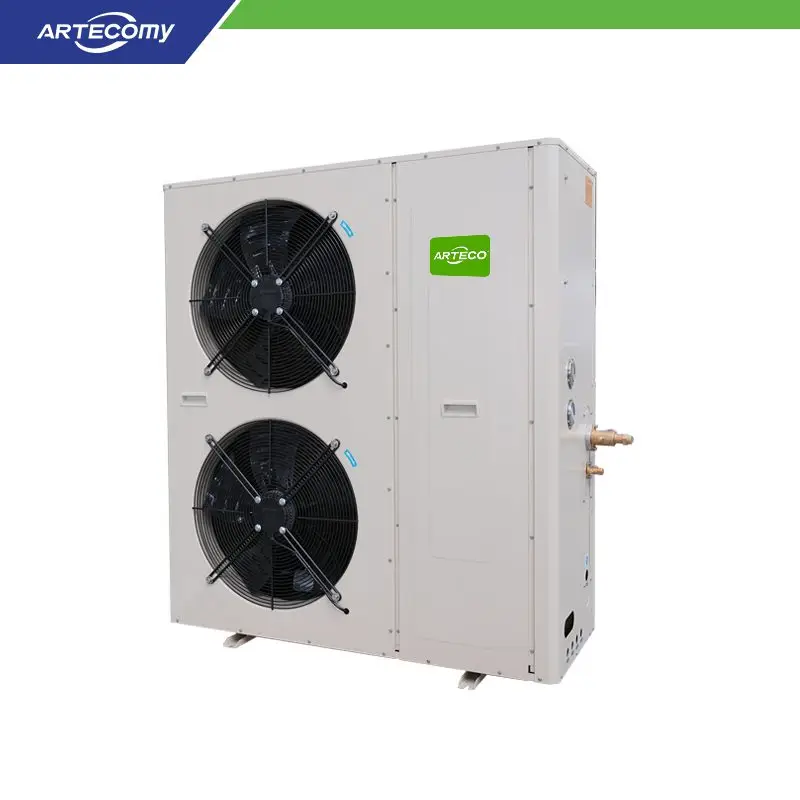

Adopting a box shaped structure, the wind ring adopts a flat mesh cover design, which has good air guiding effect and beautiful appearance.
1. Heat exchange tubes: High efficiency internally threaded copper tubes with a diameter of φ 7 are used, arranged in a triangular pattern with a tube spacing of 21 x 18.19, resulting in high heat exchange efficiency.
2. Hydrophilic aluminum foil corrugated aluminum sheet; The fin space is 2.1mm.
3. The fan specifications adopt external rotor fans with diameters of 400, 450, 550. and 630; Product test pressure: 30bar.
CORE CAPABILITIES
01
Project inputs are reviewed before final selection and quotation.
02
Production and inspection are coordinated against approved requirements.
03
Drawings, data and certification records are organized by product and model.
Submit project requirements and available documentation for review.
